16/10 – Portland

Chairman Degnan. Director Foye. Commissioners.

Portland, Oregon is a city of 600,000 whose bike infrastructure has significantly reduced gas use, congestion, healthcare costs, spending on alternate modes of transport and is generally credited with recirculating $800 million a year in local spending that otherwise would have left the region.

Across the city, cycling represents 6% mode share that includes 20,000 bike trips per day across four bridges spanning the Willamette River.

Hawthorne Bridge

The Hawthorne, built in 1910, is oldest of the four bridges. Originally fitted with two 6′ sidewalks, they were widened to 10′ in 1999. Bike traffic tripled in a decade that followed. And, by 2015, bike trips would average 6300 per day — the highest known use for any bridge crossing in the U.S.

However, this welcome growth of use would degrade the Hawthorne’s Federal Highways Administration “level of service” to a D – Poor. [1]

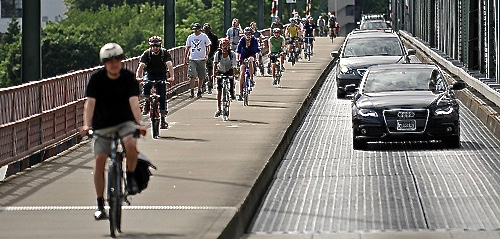

5858643115_fedb2d7b1e (1).jpgHawthorne Bridge. Image: Flickr CC.

Tilikum Crossing

In 2015, just south of the Hawthorne, the Tilikum Crossing came on line, at a cost of $135 million.  It comprised a 31′ central transit way for light rail, streetcars and buses – plus two 14′ outer lanes for biking and walking. The state-of-art Tilikum would serve 2600 bicyclists per day and draw down bike traffic on the Hawthorne by 25%.  B – Good.  [2] [3]

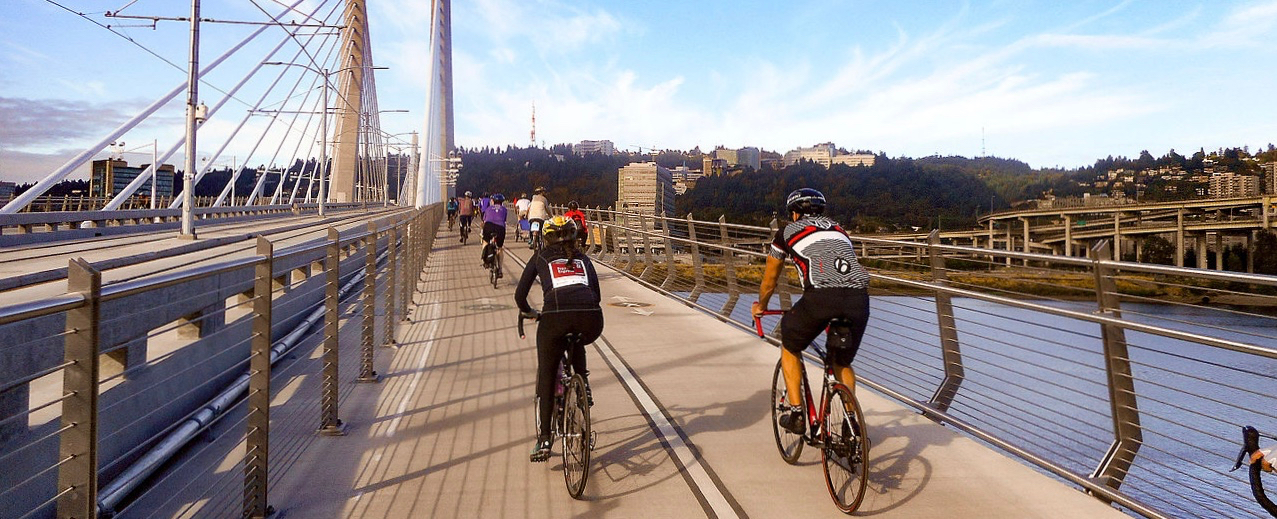

Tilikum_Crossing_-_bicycles_4 9.42.56 PM.jpgTilikum Crossing, Southern Span, Portland, 2015. Image Tedder.

George Washington Bridge

Contrast this with the GWB, which in 1989 first allowed bicyclists to access its South Path. Paralleling the rise of biking in the region overall, bike trips across its 6.75’ path would grow to 3700 per day by 2015, with a corresponding decline in the GWB’s LOS.  F – Failing. [4] [5]

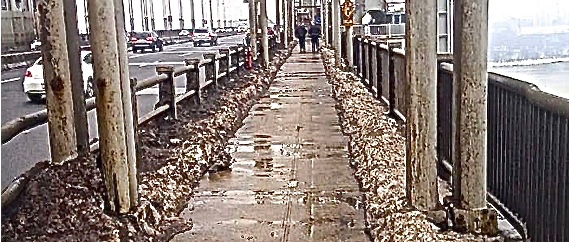

screen-shot-2015-04-09-at-10-18-14-am.jpg George Washington Bridge.  Image Hassan Diop.

Nor will the situation improve under the PA’s current plan to allocate to cyclists a dedicated, but un-widened path as part of a $1.9 billion restoration, because if bike trips continue to grow at 10.4% per year, there’ll be 9000 cyclist crossings a day by 2024.  F – Failing. [6]

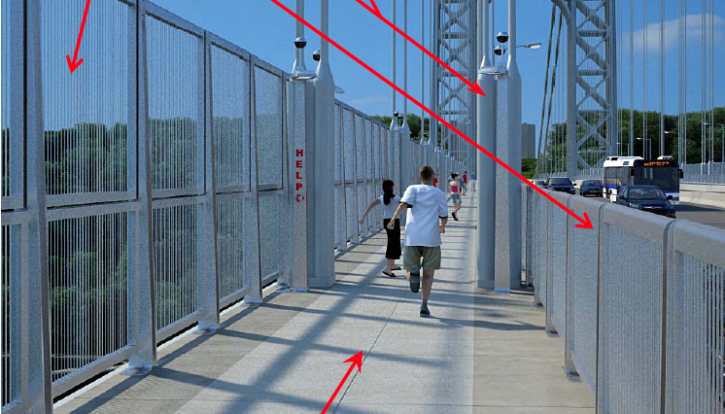

cab178-amman-whitney1-1Port Authority’s Plan for GWB, 2024.  Image Amman and Whitney.

So eight years the region is still stuck with the same failed facility, except the once-in-a-lifespan-low-cost opportunity to fix it has been wasted.

Given what Portland has done to promote smart transportation and reap the benefits, one can speculate would they’d do, given charge of the GWB. Tolerate a continually eroding level of service on the region’s sole bike-able connector, or seize the chance to improve it?  [7]

Screen Shot 2016-10-24 at 10.41.12 AM.png

140 cycling organizations, businesses and communities are now calling on the Port Authority to widen the GWB paths. Edgewater, Fort Lee, Englewood Cliffs, plus the six community boards in Manhattan and the Bronx by themselves represent 900,000 residents.

That’s 50% more than the population of Portland.

screen-shot-2016-10-11-at-8-18-10-am

Neile Weissman, 2016


Notes and References

– To be consistent with GWB data recorded by NYCDOT in 2014-2015, traffic counts for all bridges use the months of October, April, May-June, July, August, September.

– In the absence of detailed data, 25% pedestrian trips were added, pro forma, to Hawthorne and Tilikum’s actual bike counts.

– Hawthorne-Tilikum traffic counts were weekdays. On the GWB, weekends.

[1] Hawthorne Bridge, 2015 – Federal Highways Administration Shared Use Path Level of Service (FHWA SUPLOS) grade of 2.90/D – Poor: Nearing functional capacity. Peak-period travel speeds are likely reduced by levels of crowding. More users will significantly degrade bicyclist LOS. Some users likely to avoid peak-period use.  6293 bicyclists per day on (2) 10′ paths.

[2] Tilikum Crossing, 2016 – 3.95/B – Good: Path maintains a high-quality LOS for bicyclists. Retains significant room to absorb more users.  2599 bicyclists per day on (2) 14′ paths.

Screen Shot 2016-10-21 at 10.28.21 AM.png

[3] Hawthorne Bridge, 20163.30/C – Fair: Meets current demand and provides basic service to bicyclists. Modest additional capacity available; however more pedestrians, runners, or other slow-moving users will begin to diminish bicyclist LOS.  4692 bicyclists per day on (2) 10′ paths.

[4] Cyclists fault limited use of the George Washington Bridge, NY Times, 1987, http://tinyurl.com/jccqbhq

[5] George Washington Bridge, 2015 – 1.71/F – Failing: Trail conditions significantly diminishes the experience for bicyclists, and most likely all, user groups. Significant conflicts should be expected. Does not effectively serve most bicyclists.  3699 bicyclists per day + 25% ped-runners (actual) on a single 6.75′ path.  Or, 417 bicyclists and 107 peds-runners per hour in 2015.  Data source NYCDOT.

[6] George Washington Bridge, 20241.94/F – Failing.  9034 bicyclists per day + 5% peds-runners (projected) on a single 6.75′ path. Or, 417 bicyclists per hour in 2015 * 10.43 * 9 years = 1018 bicyclists per hour.  Presume 5% “pedestrian incursions” on the bicyclists’ path. 1018 * 1.05 = 1069 users per hour in 2024.

[7] Since 1991 Portland has increased the amount of people who travel to and from the central city via the Hawthorne Bridge by 20%, almost entirely by bicycles. If car trips had increased at that rate, we’d have widespread congestion, toxic pollution, and a more urgent need to make costly investments into the bridge and adjacent roads and ramps. – Bike Portland
